Instance history in WEBCON BPS Portal

Applies to version: 2022.1.4 and above, author: Krystyna Gawryał

Introduction

Instance history is an area where the user can check what actions were performed in the Workflow. History details the steps taken by the user and the paths they took to complete the assigned task and finish the workflow.

This article summarizes the most important information on the Instance history in WEBCON BPS Portal and related features.

Accessibility in Portal

History in WEBCON BPS Portal can be accessed from the instance level. To access it, click on the clock icon visible in the upper right corner of Portal.

Fig. 1. History icon in Portal

Note: the above icon is only available for instances that have been saved or for which the user has gone through at least one path.

Information displayed in Instance history

Instance history resembles a tabulated timeline and contains a series of information arranged in alternating colored rows. Below is an example of History of a simple workflow that consists of only two steps: start and counterparty registration.

Fig. 2. Example of Instance history

History contains information about the instance, its workflow, and operations performed on it by users. Unless an appropriate visibility restriction rule has been defined, History also displays the names of all form fields along with the values entered for them, even if the user has set these fields as invisible in the Field matrix.

Note: History does not include information on form fields from the Data presentation group and some from the Specialized form fields group.

Fig. 3. highlights the individual elements of History, and their explanations are given below.

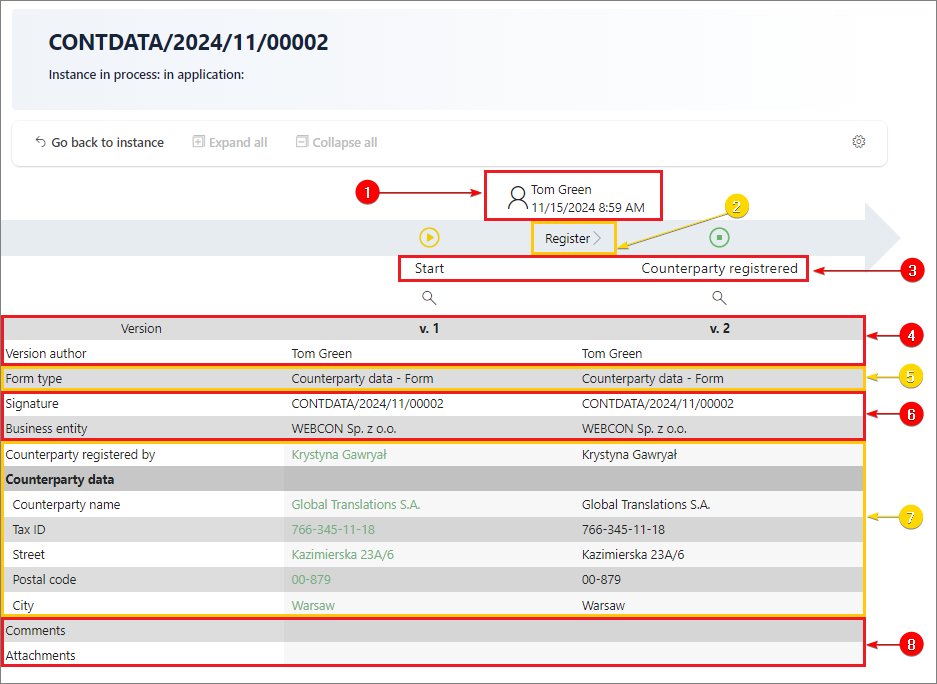

Fig. 3. Example of Instance history with individual elements highlighted

 The user who went through the path and the date and time when this occurred

‚ Path name

ƒ Step names

„ Information on the workflow instance and its author

… Form type and subtype names

†, ˆ System form fields

‡ User-defined form fields

It is worth noting that the appearance of the form fields and their values in History is uniform, regardless of the CSS styles defined for these elements on the form.

Additionally, the top left of the History window displays Instance number and a menu with options, such as: Go back to instance, Expand all, and Collapse all.

Fig. 4. Instance number and actions available in History

When Go back to instance is selected, a preview of the current version of the form opens, while Expand all and Collapse all are used to display information on individual versions of an instance, in case their number is significant and some data remains hidden. The function of the Expand all option is similar to that of the plus icon next to the path names – clicking this icon displays the previously partially hidden information relating to all instance versions.

Moreover, by clicking on the magnifying glass icon, the user can see how the instance looked before in the selected version.

Fig. 5. History timeline with the Expand all icon and the magnifying glass icon highlighted

Step icons in Instance history

The icons used to mark the types of steps in History are similar to these assigned to each step at the workflow design stage. The icons and their meanings are listed in Table 1.

Table 1. Step icons in Instance history with their explanations

Actions on an instance and color coding in History

Instance can be edited at every step of the workflow, and in some cases, even after the workflow is finished. All changes within an instance are also reflected in History, so as to inform the user what was changed, by whom, and at what stage. To make it easier to interpret the changes made, they are automatically color-coded in History as follows:

• green – entering/adding new information
• red – changing information (replacing with another)
• red and strikethrough – deleting information / overwriting an attachment

Fig. 6. shows History of an instance that has been changed at some point. These modifications are marked with the appropriate colors according to the legend above.

Fig. 6. Instance history with color coding of the changes made

Moreover, there is an additional clock icon next to the name of the modified attachment, and when clicked, a balloon with a detailed history of changes relating to the attachment is displayed.

The graphic indication of instance changes in History may vary depending on the form field. For example, when changes are made to the Item list, the icon for that form field turns green (regardless of whether its data has been added, changed or deleted) and a small plus appears next to it. After clicking on the icon, a preview of the changes made is displayed.

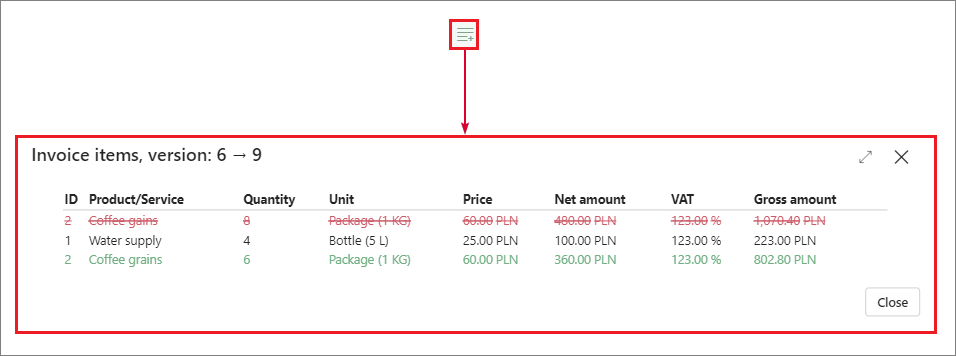

Fig. 7. The Item list icon in History after making changes along with their preview

Data visibility in History related to system settings

• Form field configuration

Whether a form field will be visible on the form – and therefore in Instance history – can be decided by entering a visibility rule for that form field. To do this, when configuring a form field, the appropriate business rule must be entered in the Visibility tab in the Visibility restriction on form field. The form field will be visible as long as the rule returns TRUE, POSITIVE or 1. If the rule returns any other values, the form field will be invisible.

On the other hand, if the person designing the workflow wants a given form field to be always visible in Instance history, regardless of user privileges and the entered rule, then they should check the Always show in instance history checkbox in the same tab.

Fig. 8. Contents of the Visibility tab with Visibility restriction on form area
and the Always show in instance history checkbox highlighted

Fig. 9. shows a sample rule that makes the client data (form field group named "Client information", see Fig. 8.) visible only to selected users (management board members in this case) both on the form and in Instance history.

Fig. 9. Sample rule restricting the visibility of a field on the form and in Instance history

Defining the above rule will prevent a user who is not a member of the management board (or an administrator) from seeing the client data in History after the workflow is finished.

Fig. 10a. Instance visible to administrator after finishing the workflow

Fig. 10b. Instance history preview in admin mode after finishing the workflow with the visibility restriction rule active

Fig. 10c. Instance history preview in standard mode with the visibility restriction rule active – no access to client data

Below is a preview of History of the same instance after checking Always show in instance history, also when the rule restricting the visibility of the "Client information" form field group (Fig. 9.) is entered.

Fig. 10d. Instance history preview in standard mode after defining the visibility restriction rule as above
and selecting Always show in instance history

In addition, if, when configuring a form field, the user marks it as an Archival field in the Behavior section of the Style and behavior tab, the form field will be displayed in Instance history by default. On the other hand, if a Technical field is defined, the form field will be visible in Instance history only in admin mode.

Fig. 11. Contents of the Style and behavior tab with the Behavior section highlighted

• Configuration of the step

Changing the field visibility settings on the form (i.e. also in Instance history) is also possible from the step level. To do this, the form field settings inheritance must be broken on the selected step. For this purpose, the user should click on the tool icon next to the form field name, which will bring up a window with the General tab. In this tab there is a field named Visibility restriction, where the appropriate rule should be entered. If the visibility rule returns TRUE, POSITIVE or 1, the form field will be visible on this step in Instance history. If the rule returns any other values, the form field will not be visible.

Fig. 12. Visibility restriction field in the General tab

After entering the appropriate rule, the form field visibility in Instance history is restricted. This is analogous to using the rule when configuring the form field, except that in this case the form field will not be visible in Instance history starting from the selected step.

The figures below show a preview of Instance history visible to an administrator (Fig. 13a.) and a user with an assigned task (Fig. 13b.), respectively, when the inheritance of settings is broken and a rule is defined to restrict the visibility of the "Client information" form field group (see Fig. 9) on the start step.

Fig. 13a. Instance history preview in admin mode after breaking inheritance of the form field group settings

Fig. 13b. Instance history preview in standard mode after breaking inheritance of the form field group settings

Therefore, if administrator does not want the designated users to have access to confidential information not only on the form, but also in Instance history, then they should break inheritance of the related form field settings on the step where such confidential information is entered on the form.

Data visible in History to users with different privilege levels

• Administrator

The administrator has the widest range of privileges, including with regard to Instance history. A person working in admin mode can see complete information about all instance versions, changes made, and users who are or were assigned tasks in the workflow.

Fig. 14a. Instance history visible to administrator

• User who edits/edited the instance

Unless appropriate rules have been defined for individual form fields to restrict their visibility on the form, a user with an assigned task as part of an instance in History will see exactly the same data as administrator, even if they did not have access to it on the form during the task (set as invisible in the Field matrix).

Fig. 14b. Instance history visible to a user with a task on one of the workflow steps
in the absence of a rule restricting the visibility of the form field(-s)

Therefore, if administrator does not want the selected users to have access to confidential information both on the form and in Instance history, it is imperative that they define the appropriate rules to restrict the visibility of the associated form fields as described above.

• Other users

Users who are not involved in the task in any way, and who have not been given privileges to view or edit instances in the process, will not see their History either.

Summary

Instance history is an important area of WEBCON BPS Portal, especially for users working in admin mode. Depending on the system settings and user privileges, it allows to get clear information about the entire instance and its appearance at individual workflow steps. In addition, History provides comprehensive information related to the date and number of actions taken and the time spent on them by individual users, even if the instance does not contain form fields that would directly inform the administrator about it (e.g. no fields such as Date and time on the form). This is a kind of data source that often reduces the need to thoroughly check the workflow configuration in the system. However, it should be borne in mind that, unless certain conditions are met, the scope of information available in History may be broader than at individual workflow steps. Therefore, the workflow should be carefully designed, paying particular attention to the privileges granted to users, so that confidential information or sensitive data is not inadvertently disclosed to unauthorized persons.
